\ Patented in Japan and 5 foreign countries /
| Official Approval | Stainless Steel Association :SAS322 Certification No.SAS32213:#15 JWWA Certification for water supply equipment G-822 |
|---|---|
| Use Application | Plumbing (Hot & Cold), Chill water, Air |
| Applicable Pipe Specification | JIS G 3448 Stainless steel pipe for general plumbing Nominal size 13Su~60Su JWWA G 115 Stainless steel pipe for water supply Nominal size 13Su~60Su |
| Applicable Water Quality | Ministry of Health, Labour and Welfare's water quality standards (#101) Conforming to Water Quality Guidelines for Refrigeration and Air Conditioning Equipment (JRA-GL01, year 1994) Please refrain from conducting water treatment with rust inhibitors as a general rule. Not suitable for use with recycled water, well water, rainwater, river water, hot springs, chemicals, oil, wastewater, gas, or steam. |
FEATURES
Features
-
1
Quick Installation
No need for a wrench, achieves the ultimate simple installation. Since tightening nuts is not necessary, the assembly time can be significantly reduced.
-
2
No nut loosen
The FI lock ring prevents the nuts from loosening.
-
3
Visibility for detection in dark areas
Provides excellent visibility for detection even in dark areas. The indicator adopts fluorescent colors, enhancing detection accuracy further with the use of a black light.
-
4
Adjustable Pipe Angle
Even after pipe connection, the pipe angle can be freely adjusted.
No problem caused by nut loosening trouble, since Nut does not rotate together with pipe: Utilizing prefab units further enhances productivity. -
5
Resistant to earthquakes and bending issues
Due to a longer insertion length of the pipe compared to conventional methods, it exhibits excellent seismic and bending resistance.
-
6
The sealing material is equipped with fluorine O-rings and protective rings
Our proven fluororubber and protective ring in the hot water circulation line ensure outstanding heat resistance, chlorine resistance, and flow water durability.
PRODUCT INFORMATION
- Reiwa O'zzone

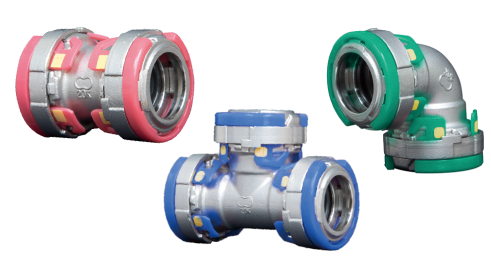

- KK Best
