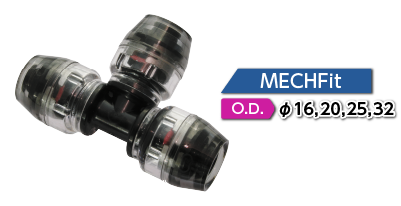

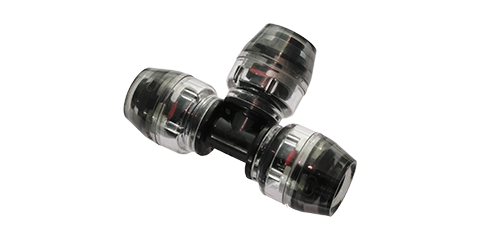

MECHFit
| O.D. | φ 16, 20, 25, 32 |
|---|---|

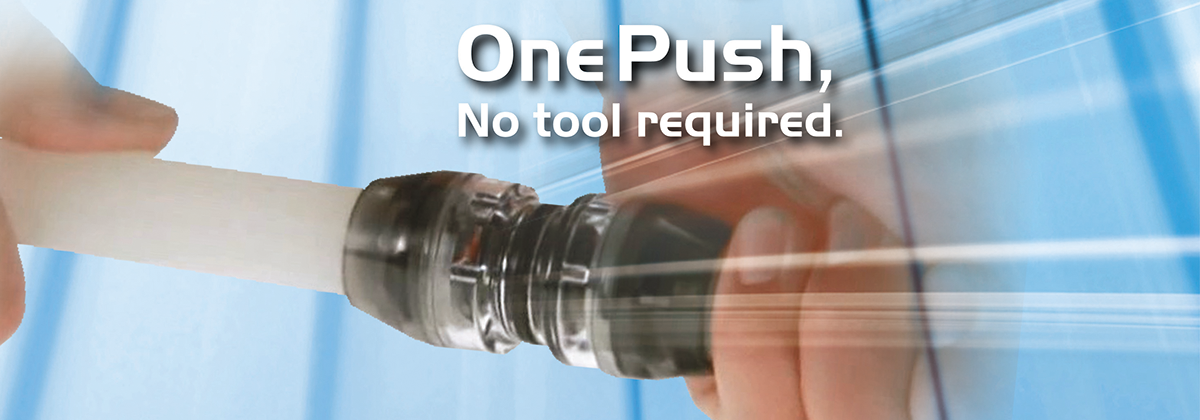

| One-Push Connection Method |
・No tools required ・No required of the skilled workers ・Quick & Easy Installation ・Saving the installation cost with less workers ・Ecological (Carbon Neutral) with chiller system |
FEATURES
-
1

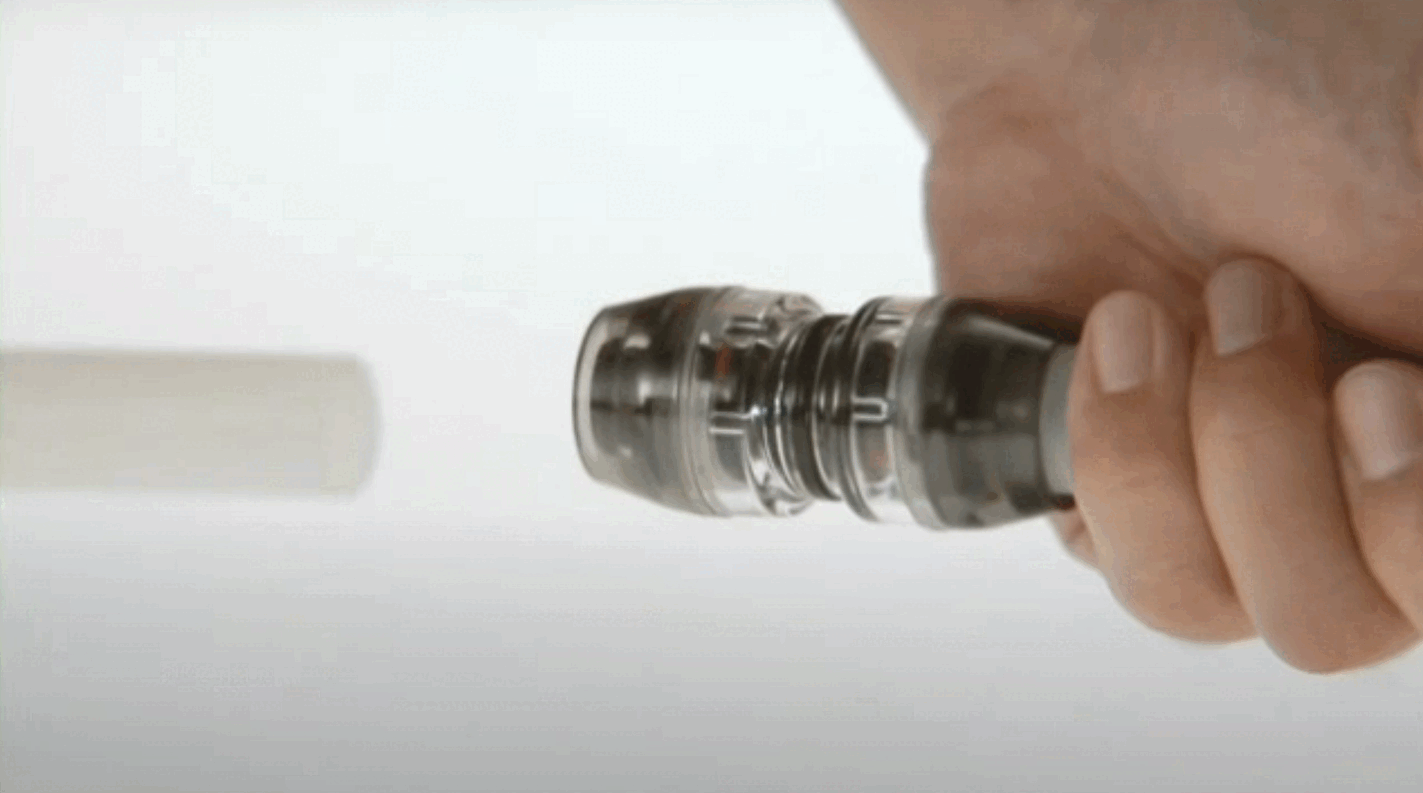

No Tools Required
Just Insert
(Calibrator is required.)
-
2

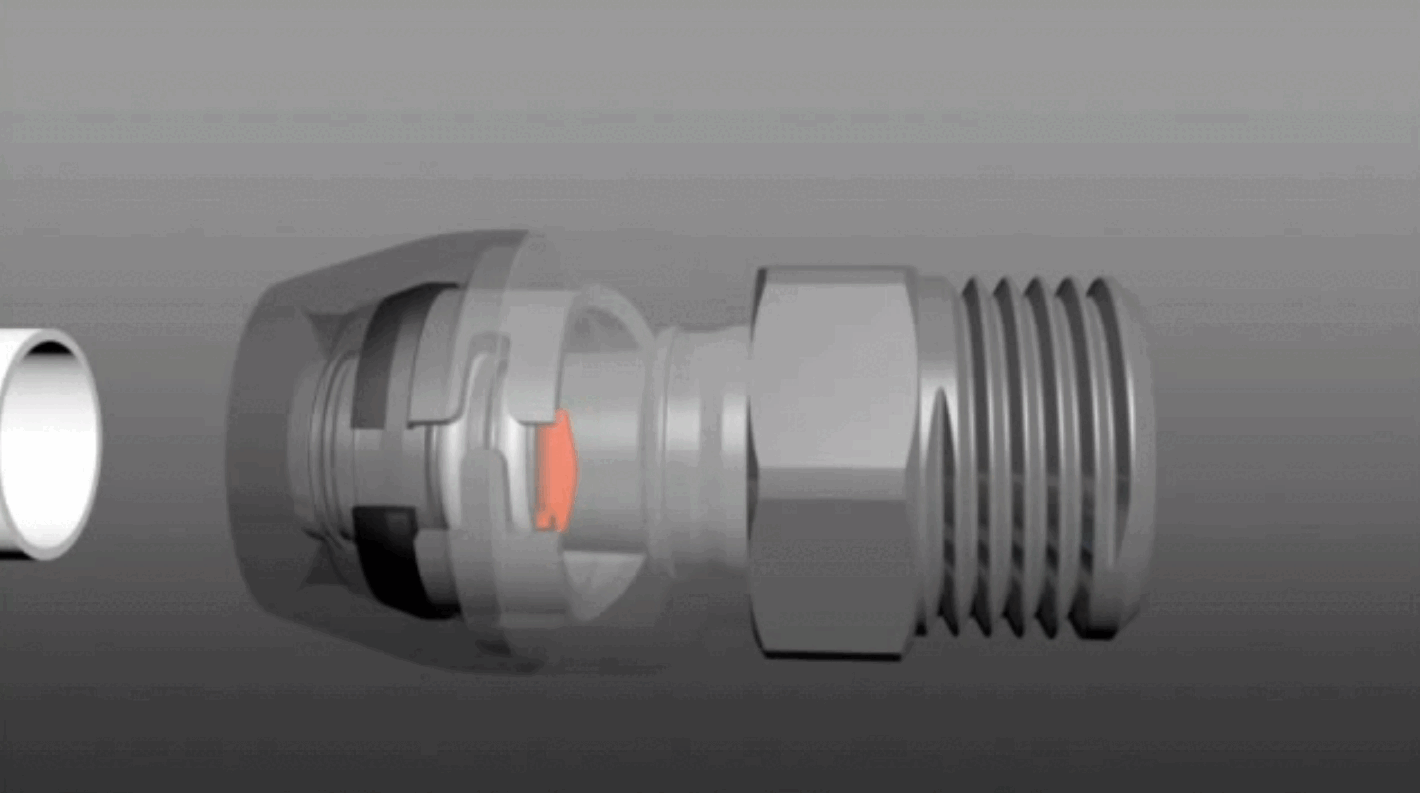

Feeling of Installation Completion
The sound of the pin popping and the visual confirmation of the jump pin are the installation completion signal.
▼
It prevents water leakage caused by insufficient installation by workers.
-
3

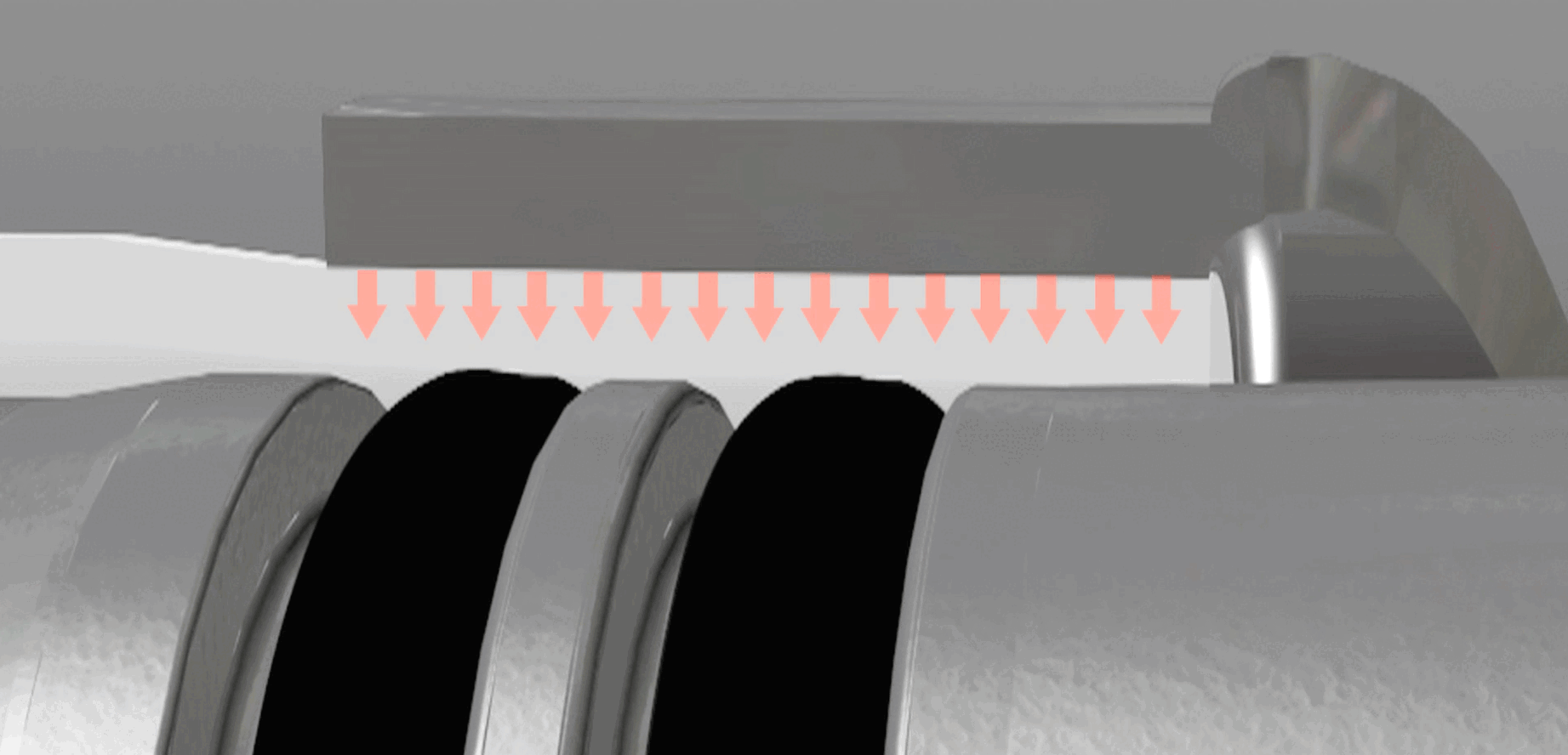

No Leakage
Through the spring force of the patented clamping, it firmly tightens semi-permanently, preventing leaks.
-
4
The reassuring history of one-touch connection fitting for over 20 years
Due to the impact of the Great Hanshin Earthquake, earthquake-resistant plastic pipes were reevaluated, and in single-family homes, multi-unit dwellings, and high-rise buildings, plastic pipe systems became the standard.
In 2001, COCOMECH released the One-Push connection method fitting for plastic pipes. Since then, for over 20 years, we have built a track record in Japan as the leading company for One-Push connection method fittings for plastic pipes.
-
5

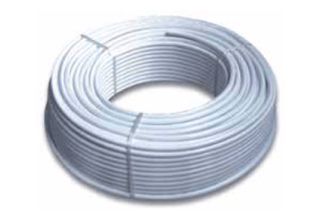

Applicable to PEX, PEX/AL/PEX, PERT and Korean PB pipe
Through the spring force of the patented clamping, it firmly tightens semi-permanently, preventing leaks.
MECHFit pipe dimension / tolerance information
ISO Standard
| Size | Dimension | Torelance | |
|---|---|---|---|
| D16 | O.D. | 16.0 | +0.2 |
| -0 | |||
| I.D. | 11.9 | +0.3 | |
| -0.3 | |||
| Thickness | 2.0 | +0.2 | |
| -0 | |||
| D20 | O.D. | 20.0 | +0.2 |
| -0 | |||
| I.D. | 15.9 | +0.3 | |
| -0.3 | |||
| Thickness | 2.0 | +0.2 | |
| -0 | |||
| D25 | O.D. | 25.0 | +0.2 |
| -0 | |||
| I.D. | 19.9 | +0.3 | |
| -0.3 | |||
| Thickness | 2.5 | +0.2 | |
| -0 | |||
| D32 | O.D. | 32.0 | +0.2 |
| -0 | |||
| I.D. | 25.9 | +0.3 | |
| -0.3 | |||
| Thickness | 3.0 | +0.2 | |
| -0 | |||
ASTM Standard
Please contact us for specifications of other standards.

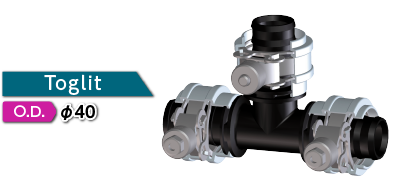

Toglit
| O.D. | φ 40 |
|---|---|
| Toggle Method |
・No Required of the skilled workers ・Quick & Easy Installation ・No restriction of Installing place ・Simple installation completion confirmation ・Ecological (Carbon Neutral) with chiller system |
In the Tengah Project, a public housing development in Singapore, MECHFit and Toglit are adopted for chiller piping. This is a grand project comprising 230 blocks (23,000 units). With the current emphasis on carbon neutrality in the face of global warming, MECHFit and Toglit are contributing to the Earth's environment. They are products demanded in today's environmentally conscious era.
MOVIE
MECHFit Movie
O.D. | φ 16, 20, 25, 32
Toglit Movie
O.D. | φ 40
Countries where MECHFit are used
USA Korea China Vietnam Singapore Malaysia UAE Europe
