LINEUP
Super Engineering Plastic Model
-
Flg.#230

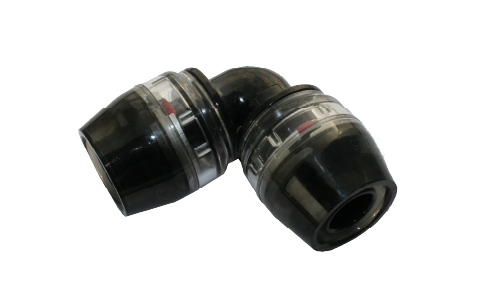

Elbow
Code No. Size pcs/ BOX 0005 16 108 0006 20 72 0010 25 32 0012 32 20 -

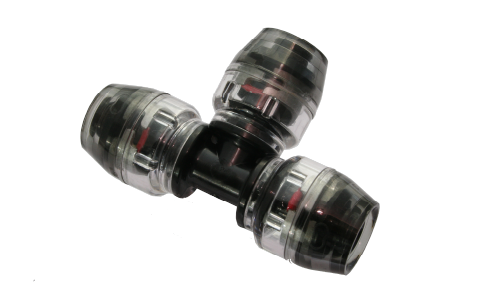

Flg.#231

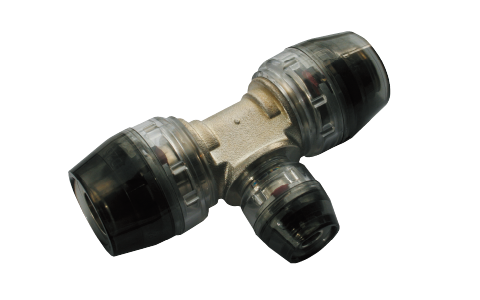

Equal and Reducing Tees
Code No. Size pcs/ BOX 0005 16 64 0006 20 40 1806 20×16×20 44 1705 20×16×16 56 1605 20×20×16 44 0010 25 24 1910 25×20×25 32 1906 25×20×20 30 1908 25×16×25 34 0012 32 10 2006 32×20×32 14 2009 32×25×32 10 -
Flg.#232

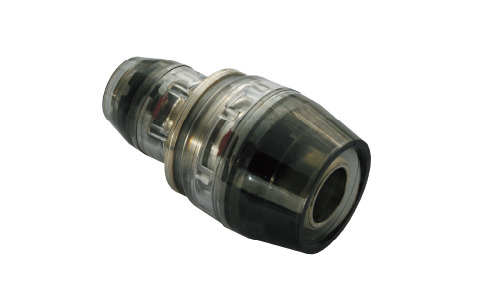

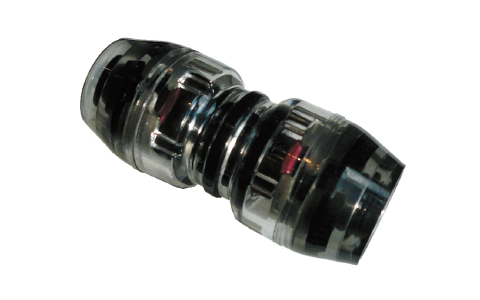

Equal and Reducing Union
Code No. Size pcs/ BOX 0005 16 136 0006 20 70 0605 20×16 70 0010 25 48 1005 25×16 48 1006 25×20 48 0012 32 30 1210 32×25 30 -

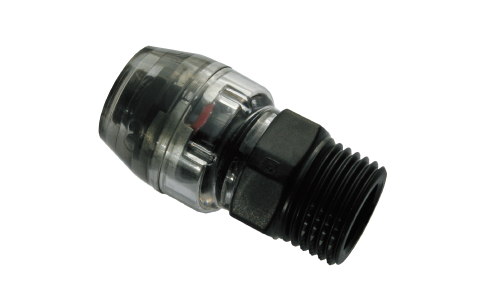

Flg.#233

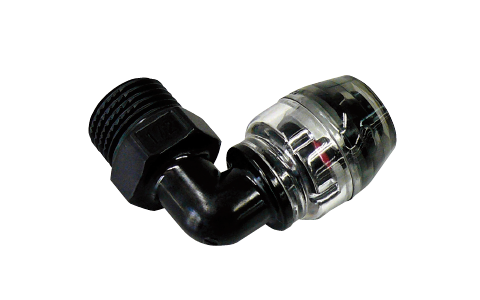

Fixed Fitting with Male Thread
Code No. Size pcs/ BOX 0504 16×1/2 192 0604 20×1/2 112 0606 20×3/4 112 1006 25×3/4 48 -

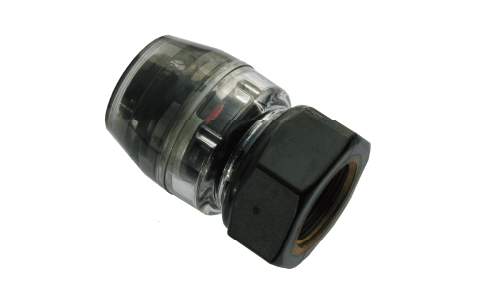

Flg.#234

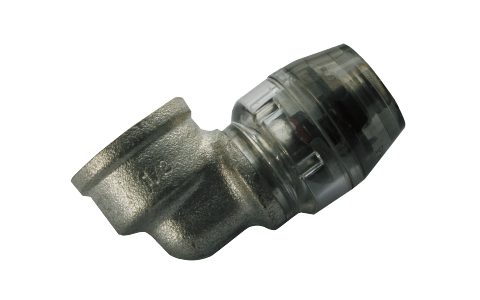

Fixed Fitting with Female Thread
Code No. Size pcs/ BOX 0504 16×1/2 120 0604 20×1/2 120 1006 25×3/4 76 -
Flg.#235

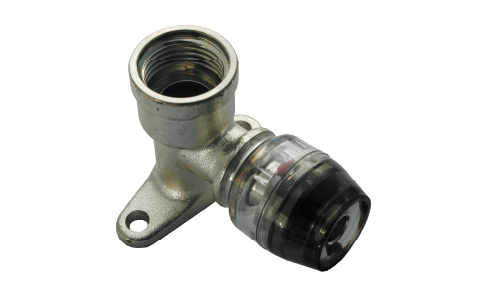

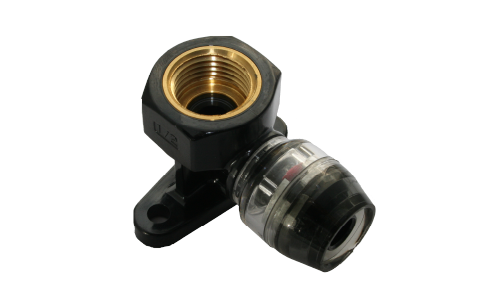

Elbow with Fixing Base (short)
Code No. Size pcs/ BOX 0504 16×1/2 68 0604 20×1/2 68 -

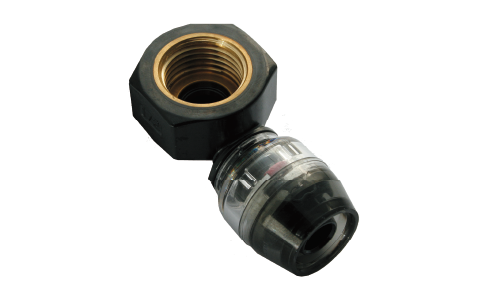

Flg.#237
Terminal Elbow
Code No. Size pcs/ BOX 0504 16×1/2 114 0604 20×1/2 102 1006 25×3/4 48 -
Flg.#247
Terminal Elbow with Threaded Male End
Code No. Size pcs/ BOX 0504 16×1/2 108
Brass Model
-
Flg.#250

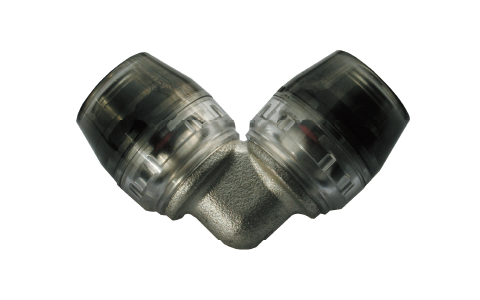

Elbow
Code No. Size pcs/ BOX 0012 32 20 -
Flg.#251
Equal and Reducing Tees
Code No. Size pcs/ BOX 1908 25×16×25 34 0012 32 10 2006 32×20×32 14 2007 32×25×25 12 2009 32×25×32 10 -
Flg.#252
Equal and Reducing Union
Code No. Size pcs/ BOX 1005 25×16 48 0012 32 30 1205 32×16 TBA 1210 32×25 30 -
Flg.#253

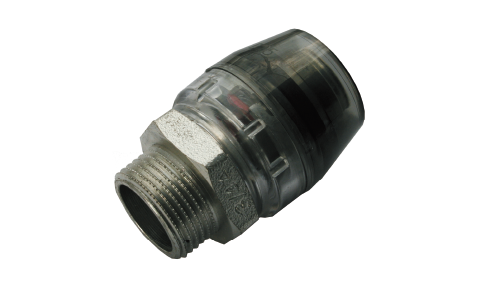

Fixed Fitting with Male Thread
Code No. Size pcs/ BOX 0504 16×1/2 192 0604 20×1/2 112 0606 20×3/4 112 1006 25×3/4 48 1010 25×1 48 1210 32×1 30 1212 32×1-1/4 TBA -

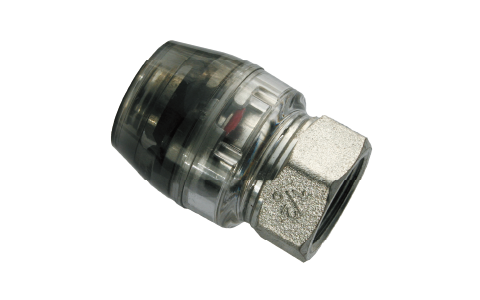

Flg.#254
Fixed Fitting with Female Thread
Code No. Size pcs/ BOX 0504 16×1/2 120 0604 20×1/2 120 0606 20×3/4 120 1006 25×3/4 76 1010 25×1 70 1210 32×1 30 -
Flg.#255
Elbow with Short Fixing Base
Code No. Size pcs/ BOX 0504 16×1/2 68 0604 20×1/2 68 0606 20×3/4 68 -
Flg.#257
Terminal Elbow with Threaded Female End
Code No. Size pcs/ BOX 0504 16×1/2 114 0604 20×1/2 102 0606 20×3/4 68 1006 25×3/4 48 1010 25×1 60 1210 32×1 28 -
Flg.#258

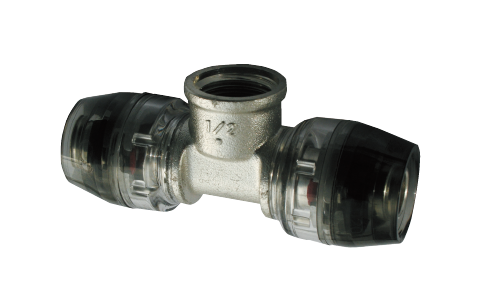

Tee with Female Threaded End
Code No. Size pcs/ BOX 0504 16×1/2 60 0604 20×1/2 44 0606 20×3/4 44 -

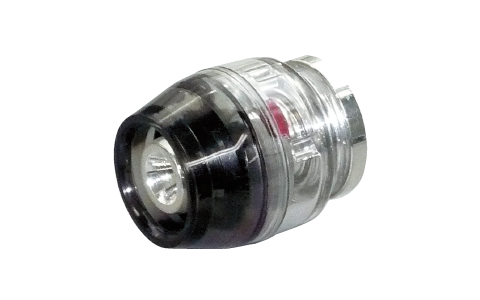

Flg.#263
Stop End
Code No. Size pcs/ BOX 0005 16 TBA 0006 20 TBA -

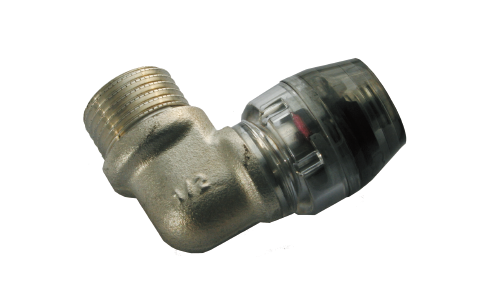

Flg.#277
Terminal Elbow with Threaded Male End
Code No. Size pcs/ BOX 0504 16×1/2 108 0604 20×1/2 84 0606 20×3/4 84 1006 25×3/4 40 -
Flg.#276

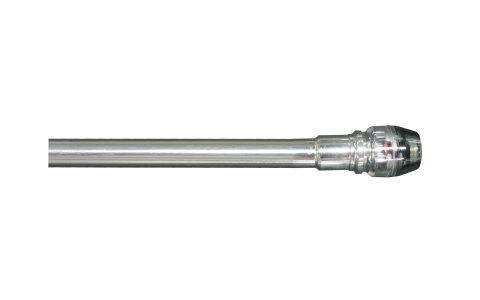

Copper Adapter Long
Code No. Size pcs/ BOX 05015 16×CU15 40

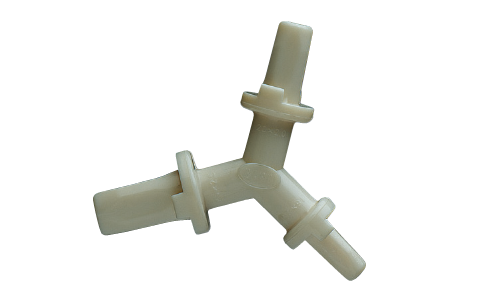

Calibration tool
-
Flg.#266
Elbow
Code No. Size pcs/ BOX 0010 16×20×25 40 0012 32×32×32 10
- MECHFit pipe dimensional tolerance information
- MECHFit PEXpipe specification (Under construction)
- MECHFit Multilayer pipe specification (Under construction)
Super Engineering Plastic Model
-

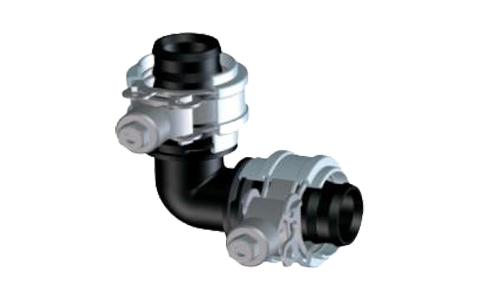

Flg.#340
Elbow
Code No. Size pcs/ BOX 0014 40 TBA -

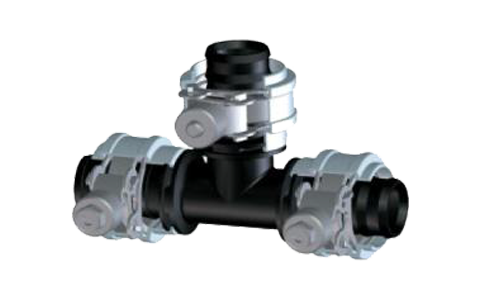

Flg.#341
Equal Tees
Code No. Size pcs/ BOX 0014 40 TBA -
Flg.#342
Equal Union
Code No. Size pcs/ BOX 0014 40 TBA
Brass Model
-

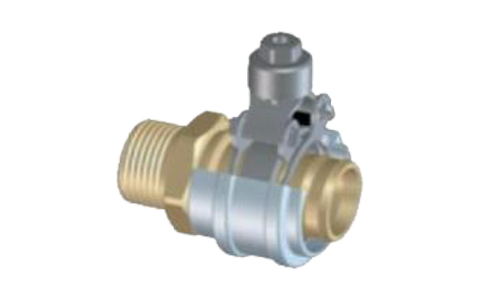

Flg.#373
Fixed Fitting with Male Thread
Code No. Size pcs/ BOX 1410 40×4" TBA 1412 40×1-1/4" TBA -
Flg.#378

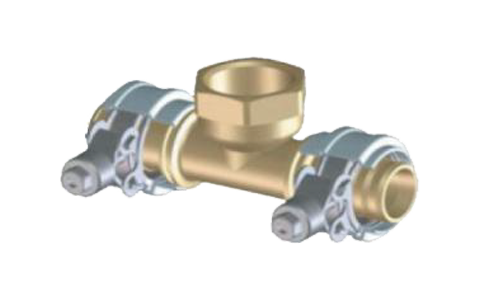

Tee with Female Thread end
Code No. Size pcs/ BOX 1410 40×4" TBA 1412 40×1-1/4" TBA
| # | Code | Description | size | material |
|---|---|---|---|---|
| 1 | 340-0014 | Elbow | 40 | SUS + Acudel |
| 2 | 341-0014 | Tee | 40 | SUS + Acudel |
| 3 | 342-0014 | Union | 40 | SUS + Acudel |
| 4 | 373-1410 | Male Adapter | 40 x 1' | SUS+ CW602N |
| 5 | 373-1412 | Male Adapter | 40 x 1'-1/4" | SUS+ CW602N |
| 6 | 378-1410 | Tee Female | 40 x 1' | SUS+ CW602N |
| 7 | 378-1412 | Tee Female | 40 x 1'-1/4" | SUS+ CW602N |
