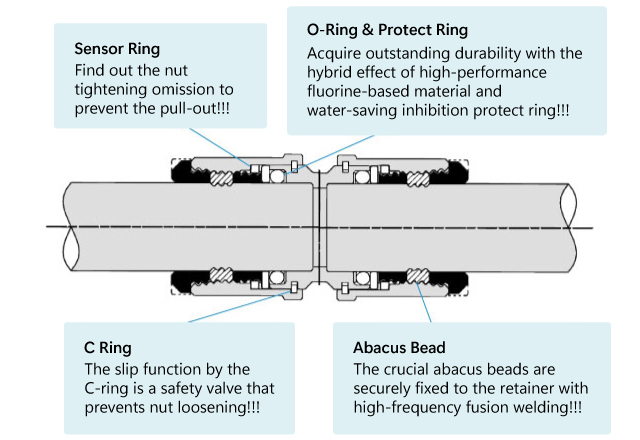

STRUCTURE
| Use Application | Pressure | Temperature | Flow Rate | |
|---|---|---|---|---|
| Water Supply | 0~2.0MPa | - | Below 3.5 m/s | |
| Hot Water Supply | 0~1.0MPa | 0~85°c | Circulation System | Below 2.5 m/s |
| 0~95°c | Non-Circulation System | |||
| Cold &Hot Water | 0~1.0MPa | 0~85°c | 0.6~2.0m/s | |
| Chilled Water | 0~1.0MPa | - | 0.6~3.5m/s | |
| Air | 0~0.8MPa | - | - | |
| Sprinkler | 0~1.0MPa | - | - | |
